Radiator available in 1 Dimension:

► 160x60cm

Hot water or electric version 480W

- price without tax:

mail info

Basic colours, slightly rough structure

Premium colours, split stone structure

We offer an individual approach to each order. Based on the photo of the interior where the radiator is to be installed, we make a visualisation in various colour variants so that the customer can make the right choice. Customer Service is our priority - the Welan team

Each radiator manufactured by our company is different – these are true pieces of art and you will not find two identical products. The color, surface structure and microcracks are unique, naturalised elements.

Scala model dimensions

5 years

Mineral composite

0,7 MPa (7 bar)

90°C

Wall mounting

Female thread G1/2"

Guarantee

Finishing

Max. pressure

Max. temperature

Mounting type

Connector

Additional information

*) the colors - BkO - Opal Black, BrO - Opal Brown, GdO - Opal Gold, WhO - Opal White - premium colours

*) the colors - Sv - Silver, Bk - Black, Br - Brown, BkV - Black Venezia - basic colours

Technical specifications for Scala model
(A) height [mm]	(B) width [mm]	A1 [mm]	max working pressure [bar]	75/65/20ºC [W]	85/75/20ºC [W]	weight [kg]	product code	price without tax (EURO)	price without tax (EURO)
(A) height [mm]	(B) width [mm]	A1 [mm]	max working pressure [bar]	75/65/20ºC [W]	85/75/20ºC [W]	weight [kg]	product code	basic colours	premium colours
1600	600	50	7	480	665	70	SCA-16060-XX*	1250,00	1380,00

Technical specifications for Scala model
(A) height [mm]	(B) width [mm]	A1 [mm]	max working pressure [bar]	75/65/20ºC [W]	85/75/20ºC [W]	weight [kg]	product code	price without tax (€,$,£)	price without tax (€,$,£)
(A) height [mm]	(B) width [mm]	A1 [mm]	max working pressure [bar]	75/65/20ºC [W]	85/75/20ºC [W]	weight [kg]	product code	basic colours	premium colours
1600	600	50	7	480	665	70	SCA-16060-XX*

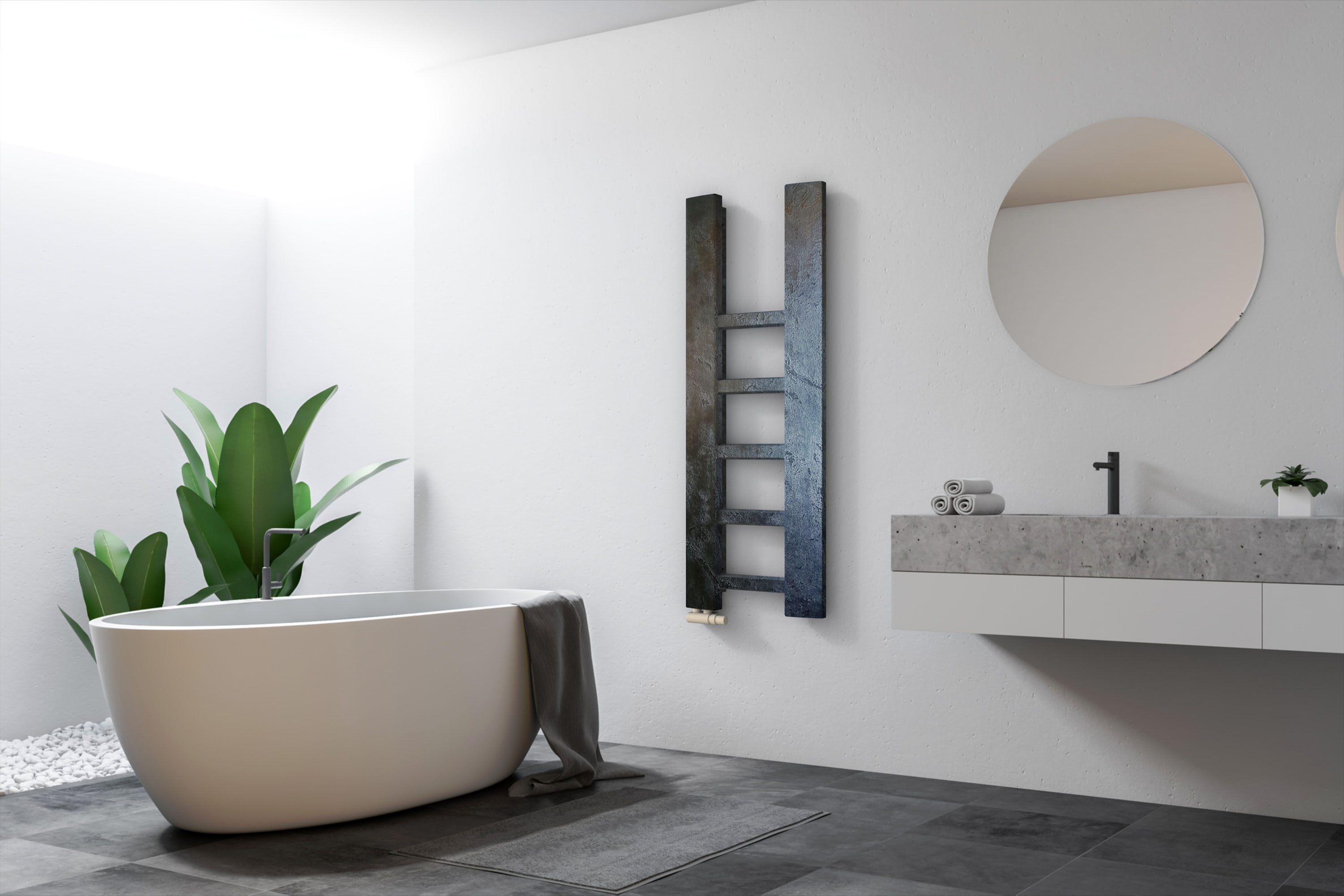

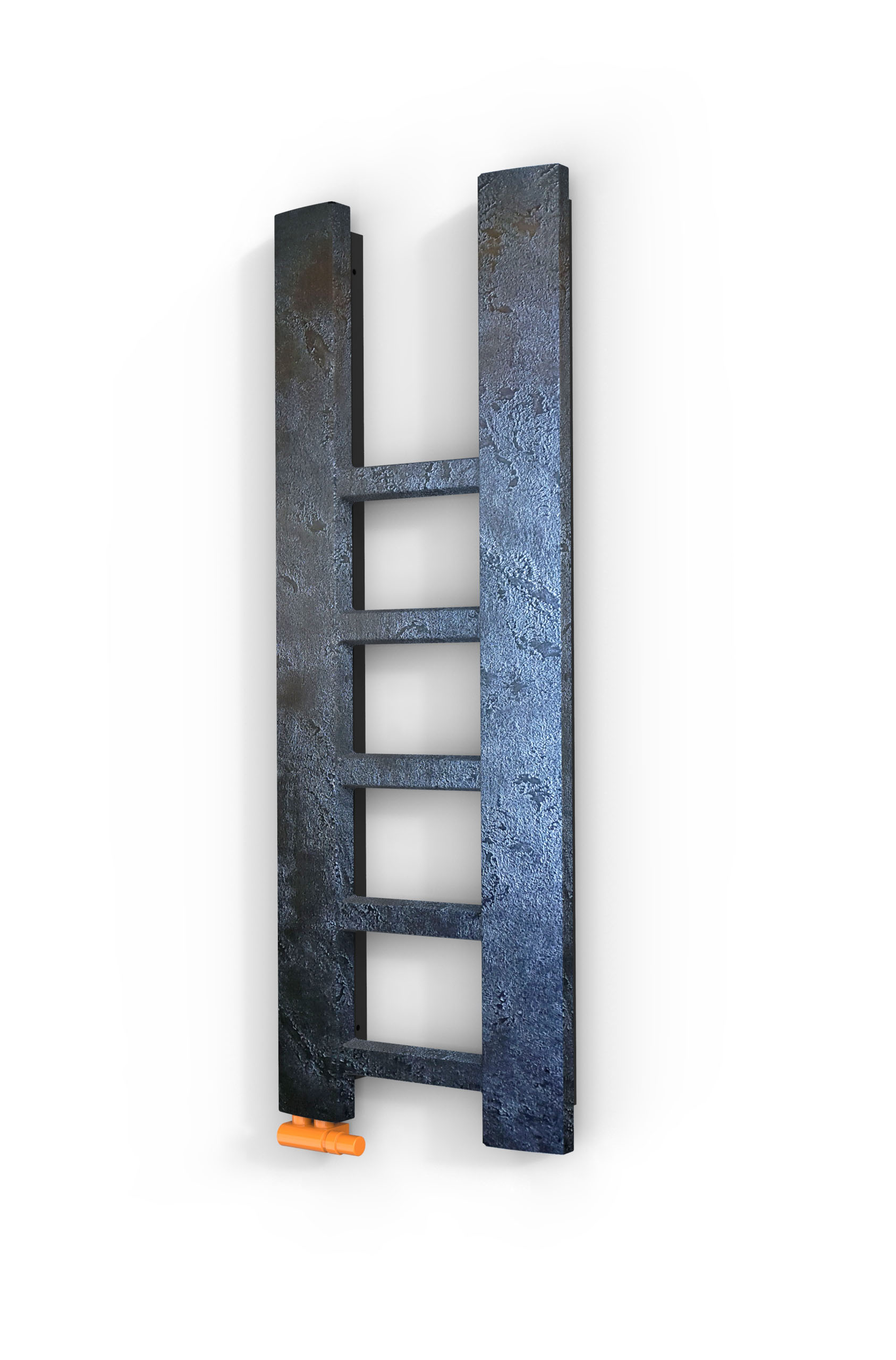

Scala Opal Black (BkO)

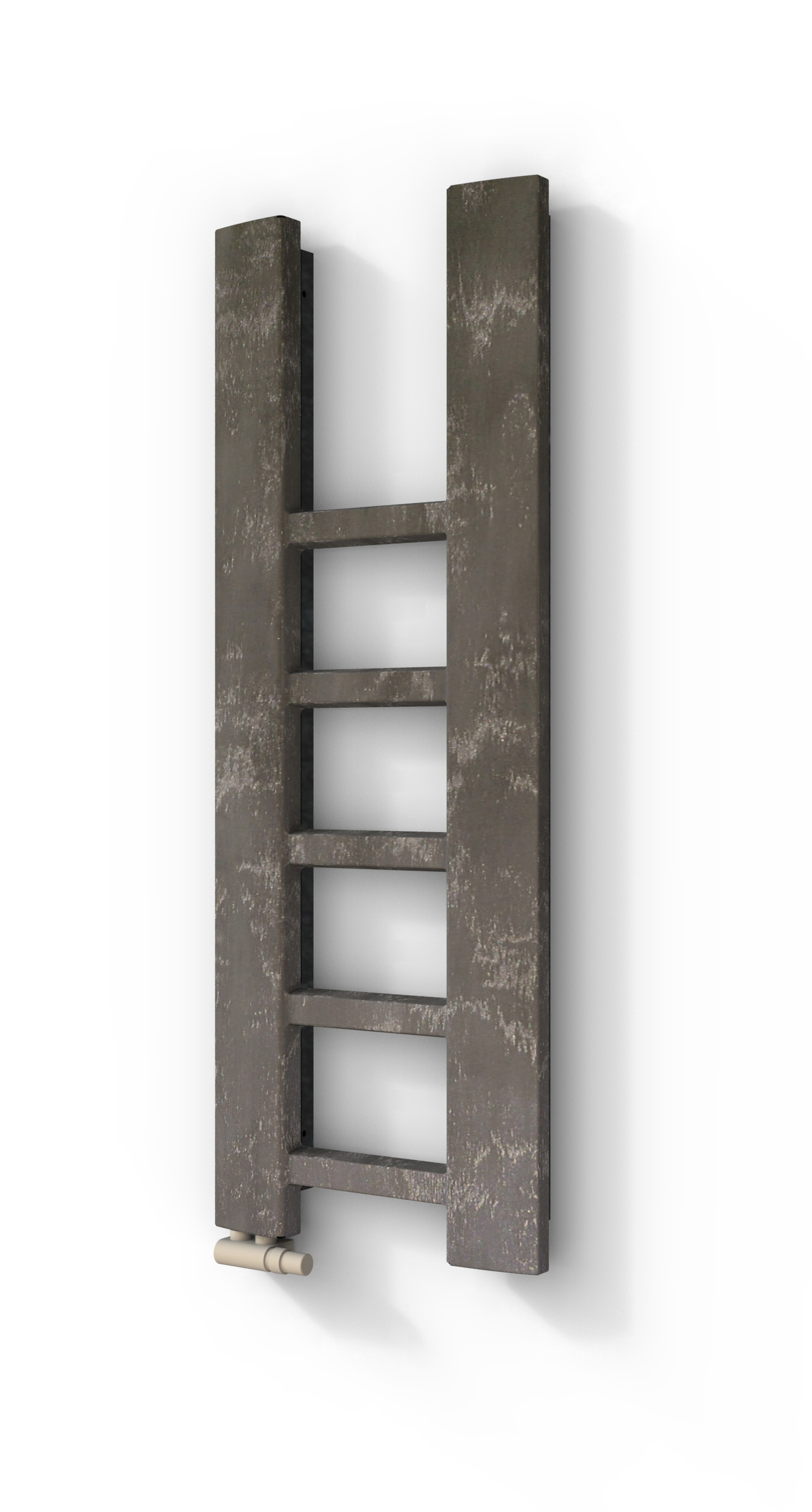

Scala Opal Brown (BrO)

Scala Opal White (WhO)

Scala Gold (GdO)

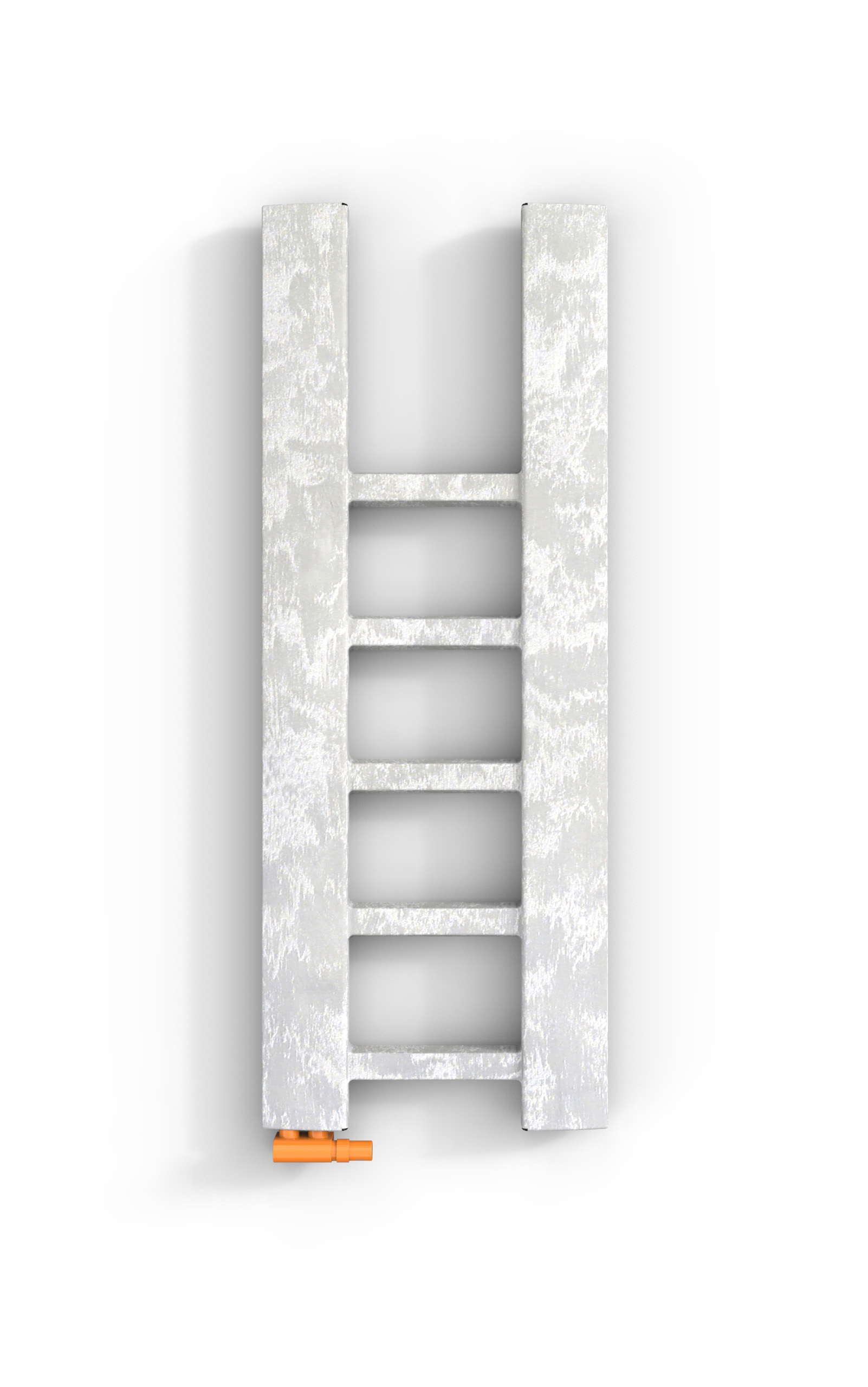

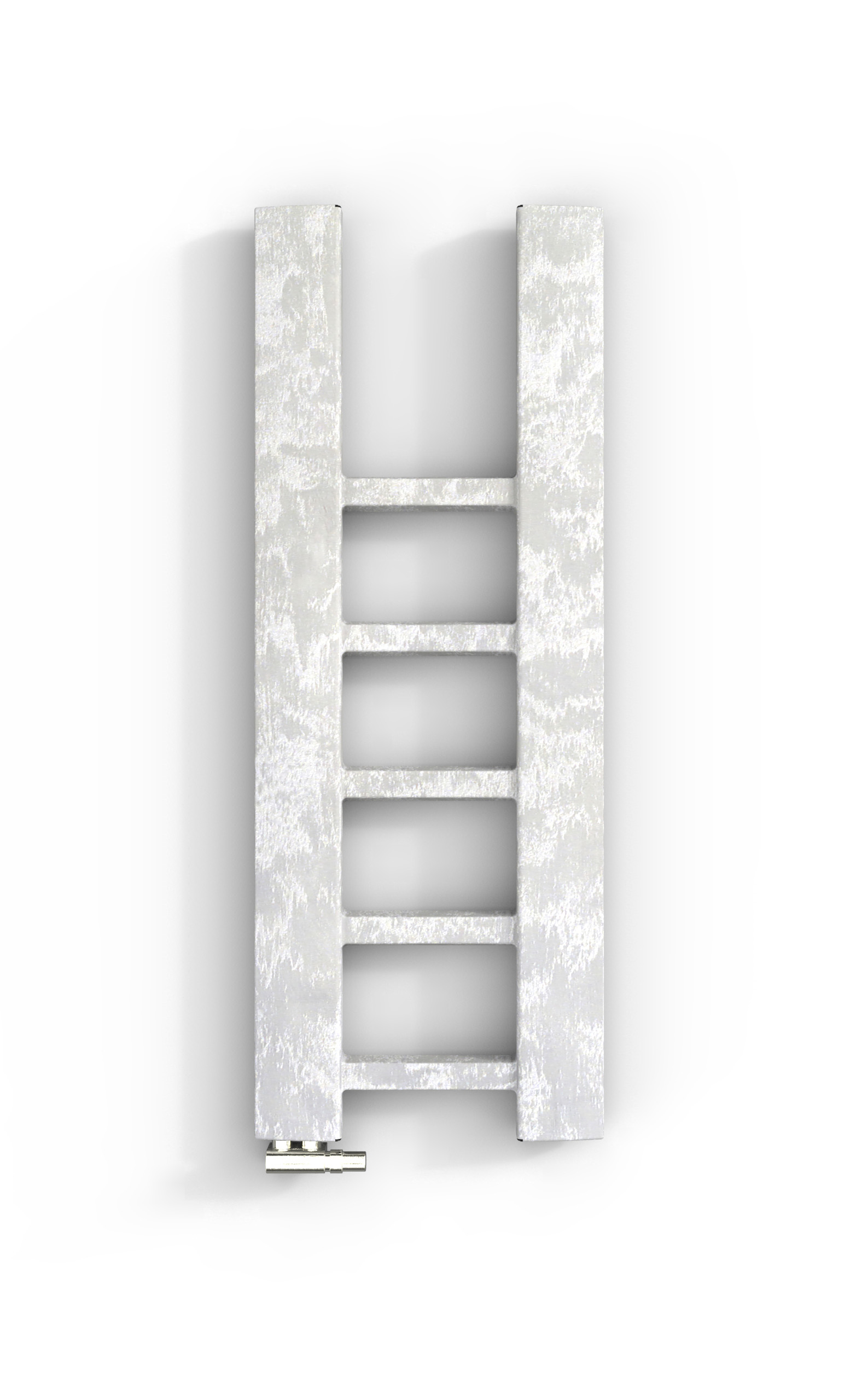

Scala Silver (Sv)

Scala Brown (Br)

Scala Black (Bk)

Scala Black Venezia (BkV)

Do każdego grzejnika występuje możliwość aplikacji wariantu wodno-elektrycznego.

Scala

It is not just an ordinary radiator you will see in most living rooms. Its unusual form draws attention like a magnet. Scala - our one-of-a-kind radiator.
